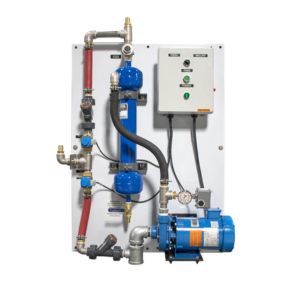

Water Reclaim System
Item Number: BREWRS-100
Supplier:
BROADWAY EQUIPMENT CO
Description

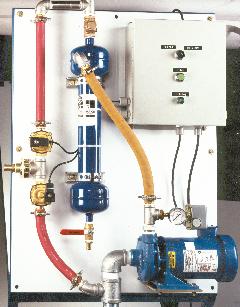

This wall-hung unit works well with any Broadway car wash systems The mounting board is pre-wired and pre-plumbed for easy installation in the car wash bay area. Requires underground water trap system.
Features
- The system reduces water consumption by approximately 75%, significantly lowering operating costs. Water is pumped from the last compartment of the underground settling tank through a cyclone separator to remove suspended solids.
- Washes with reused water and rinses with fresh water.
NOTE: Requires underground water trap system. Contact us for blueprints. Local contractor will need to install and plumb underground holding tanks.
Warranty
Thirteen (13) month parts & labor
Product Specifications
- Dimensions: 46"H x 40"W x 13"D
- Basic Requirements: 3 phase, 20 amps, 208/230 or 460 volt, 1" city water line, 25 gpm at 40 psi
- Designed For: Inbay Automatics
- Electrical Service: 220/230 volt AC, 1 phase, 60 Hz, 20 amp breaker (12 amp running load)
- Separation Method: Cyclone Separator
- Water: 2" suction line discharge pressure at 40 p.s.i.
- Water Clarity: 70 microns
- Water Volume: 35 gallons per minute at 35 psi
- Indeal Wash Volume: 100 Cars Per Day
