Item shown may not be actual product.Product and price information are subject to change without notice.
$2,183.76 *
*log in for dealer pricing

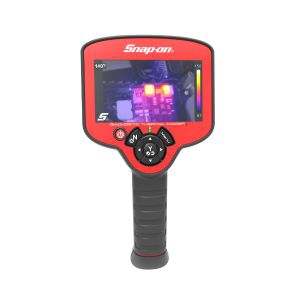

Diagnostic Thermal Imager+
Description
Using infrared technology to reveal heat caused by friction, electrical resistance, pressure changes and more, the Diagnostic Thermal Imager+ from Snap-on® lets you track down vehicle faults and find the right fix faster than ever.
When connected to Wi-Fi, every image you capture with the Diagnostic Thermal Imager+ is automatically uploaded to the new Snap-on Cloud.
This means you can access them from your phone or computer whenever you need them, to make your next diagnosis — and your next repair — faster and more accurate than your last.
Fully loaded with a database full of automotive applications, guided tests and reference images to help you interpret results, putting a more accurate diagnosis — and more productivity — in clear view on every job.
Features
- 3 Color Palette Options
- 4.3" IPS Color Screen
- Automatic Color Calibration
- Crisp 120 x 90 Thermal Sensor Resolution
- Detailed Heat Signature Images
- Exclusive Guided Tests
- Extreme Temp Measurement Capabilities
- Freeze Function
- Image Capture
- Image Refresh
- Large Display
- Pistol-grip Ergonomics
- Problem Identification from Any Angle
- The Snap-on® Cloud @Altusdrive
- Test Reference Images
- Video Recording
- View - Customized On-screen
- View - Image Blending
- View - Picture-in-Picture Wi-Fi enabled
- View - Split Screen
- Wireless Printing
- View - Thermal
Product Specifications
- Battery Charge Time: 5 hours
- Battery Life: 4 hours
- Battery Pack Size Capacity: Single Cell, 3.6V, 2150mAh MIN
- Battery Pack Type: Rechargeable lithium-ion battery pack
- DC Operating Voltage: 4.75 to 5.25 VDC
- Dimensions: Height: 9.09 in. (231.0 mm)
- Dimensions: Width 4.80 in. (122.0 mm)
- Dimensions: Depth 2.24 in. (57.0 mm)
- Display Resolution: 365 x 270 pixel
- Display Size: 4.3 inch diagonal
- Display Type: TFT Color LCD Touch Screen
- Power Supply: 5 VDC, 2A
- Screen refresh rate: 9x/second
- Thermal Temp. Visibility: -4 to 840 degrees F (-20 to 450 degrees C)
- Thermal Max. Temp. Reading: 840 degrees F (450 degrees C)
- Weight: 0.83 lb (376.5 g)
- Wi-Fi: Wi-Fi Capable
