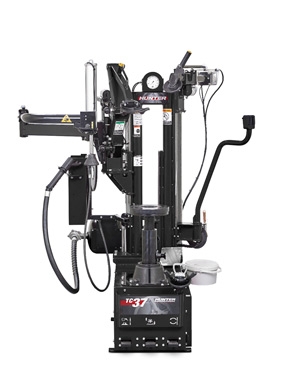

TC37 Center Clamp Tire Changer, Black
Item Number: HUNTC37BLK
Supplier:
HUNTER ENGINEERING COMPANY
Description
The TC37 builds on the powerful legacy of the TC3700 that goes back to the original ground-breaking TC350. Yet the TC37 is not a mere update. It is a complete ground-up redesign which builds on the strengths of its legacy but uses a brand new, modern platform.
Features
- Bead press arm assists mounting difficult assemblies.
- Traditional mount head- polymer construction prevents damage to tire and rim. Vertical locking head protects wheel face.
- Motor and drive - 0-14 rpm variable clockwise speed, 7 rpm counter-clockwise speed. 867 ft-lbs. of torque.
- Blast inflation directs bursts of compressed air to easily seat the bead
- Simple operation single pendant control - all controls at fingertips
- Split bead roller system
- Match-mounting made easy
- Easy bottom bead demounting with roller
- Direct indention eases bead braking on all tires
- Intuitive center-clamp system offers three height positions. Cam action multiplies clamping force.
Warranty
Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.
Product Specifications
- Shipping Weight: 725 lbs (329 kg)
- Height: 72" (1,829 mm)
- Adjustable Clamping Height: Yes
- Air Supply Requirements: 115-145 psi (8-10 bar)
- Bead Loosening Type: Rollers or Shovel (optional)
- Clamping Type: Center w/ Quick Clamp and Cam Plate
- Depth: 57" (1,448 mm)
- Drive: Variable CW 15 rpm CCW
- Match Mounting Capable: Yes
- Maximum Tire Diameter: 46"
- Maximum Wheel Width: 19"
- Mount / Demount Tool: Polymer Mount Head
- Power Requirements: 208-230V, 15A, 60Hz, 1 ph NEMA 20 amp plug, L6-20P
- Rim Diameter Range: 10-26"
- Width: 40" (1,016 mm)
